Nasal/Oral Dual CO₂ Cannula with O₂ Delivery for Oridion Microstream with Micron Filter, Adult 7' - Pack of 10
Dual-Site CO₂ Sampling with Supplemental O₂ Delivery – Optimized for Sidestream Monitoring.
The Adult Nasal/Oral Dual CO₂/O₂ Cannula with integrated filter is engineered for simultaneous expired gas sampling and oxygen delivery in non-intubated patients. Compatible with Oridion Microstream capnography monitors, this 7-foot sampling line provides reliable EtCO₂ monitoring from both the nasal and oral cavities, while delivering oxygen through the opposite nostril.
Key Product Features
-
Oridion Microstream Compatible – Designed for low-flow sidestream modules (50 mL/min).
-

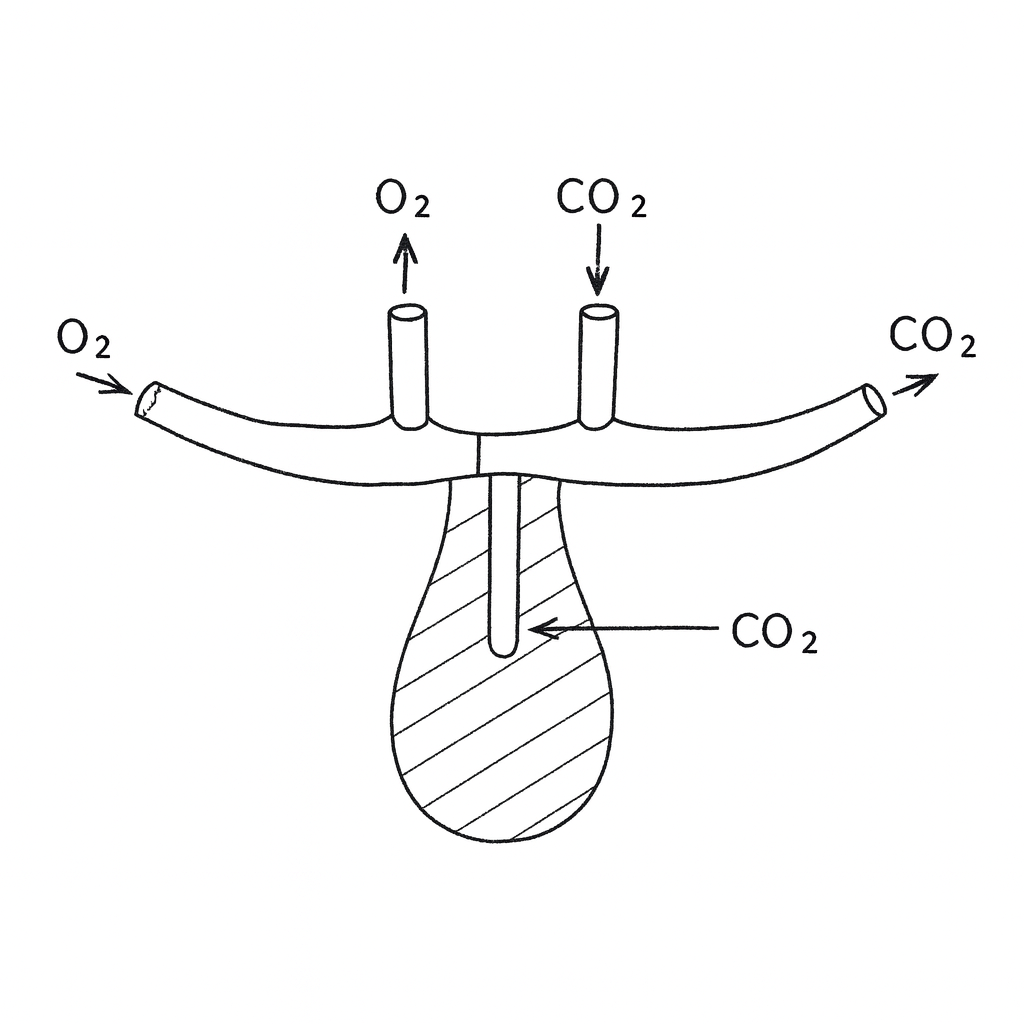

Dual-Site EtCO₂ Sampling – Collects CO₂ from one nostril and oral cavity for maximum sampling accuracy.
-
Dual O₂ Delivery System – Provides oxygen via the remaining nasal passage.
-
Built-In Filter – 0.2-micron filter improves monitoring precision and protects the capnography unit.
-
Latex-Free & DEHP-Free – Phthalate-free PVC construction ensures safety for sensitive patients.
-
7 ft. (213 cm) Tubing – Offers full mobility and ease of positioning.
-
Comfortable Fit – Soft, dip-molded design accommodates both nasal and oral placement.
-
Quick-Connect Female Luer Lock O₂ Port – Compatible with standard oxygen sources.
-
Disposable & Short-Term Use – Intended for single-patient use (≤ 24 hours).
Specifications
-
Product: Dual CO₂/O₂ Nasal/Oral Cannula with Filter
-
Patient Size: Adult
-
Cannula Style: Nasal/Oral
-
Tubing Length: 7 ft. (213 cm)
-
CO₂ Sampling Configuration: 1 nasal + 1 oral port
-
O₂ Delivery: Dual system (Female Luer Lock)
-
Filter: 0.2 micron
-
Sampling Tube Size: ID 1.0 mm × OD 2.5 mm
-
Use Duration: Short-Term (Up to 24 Hours)
-
Use Type: Disposable / Single-Patient Use
-
Expiration Date: 06/2028
-
Material: DEHP-Free, Latex-Free PVC material
-
Environment of Use: Hospital, Sub-Acute, Pre-Hospital
Instructions for Use
-
Remove cannula from packaging.
-
Position prongs in nostril and oral port at mouth of patient.
-
Attach the oxygen tubing to the O₂ source (max 5 L/min).
-
Connect sampling line to capnography monitor.
-
Allow monitor to warm up and begin waveform capture to begin sampling expiration measurement.
Warnings & Notices
-
Single-Use Only – Do not clean, disinfect, or reuse
-
Not for arterial, venous, or enteral access
-
Do not use if package is damaged
-
Latex-Free – Suitable for latex-sensitive individuals
🔒 Disclaimer: This product is not manufactured by Oridion. It is a compatible alternative, referencing OEM part numbers 009822 and 010210 for identification only.
