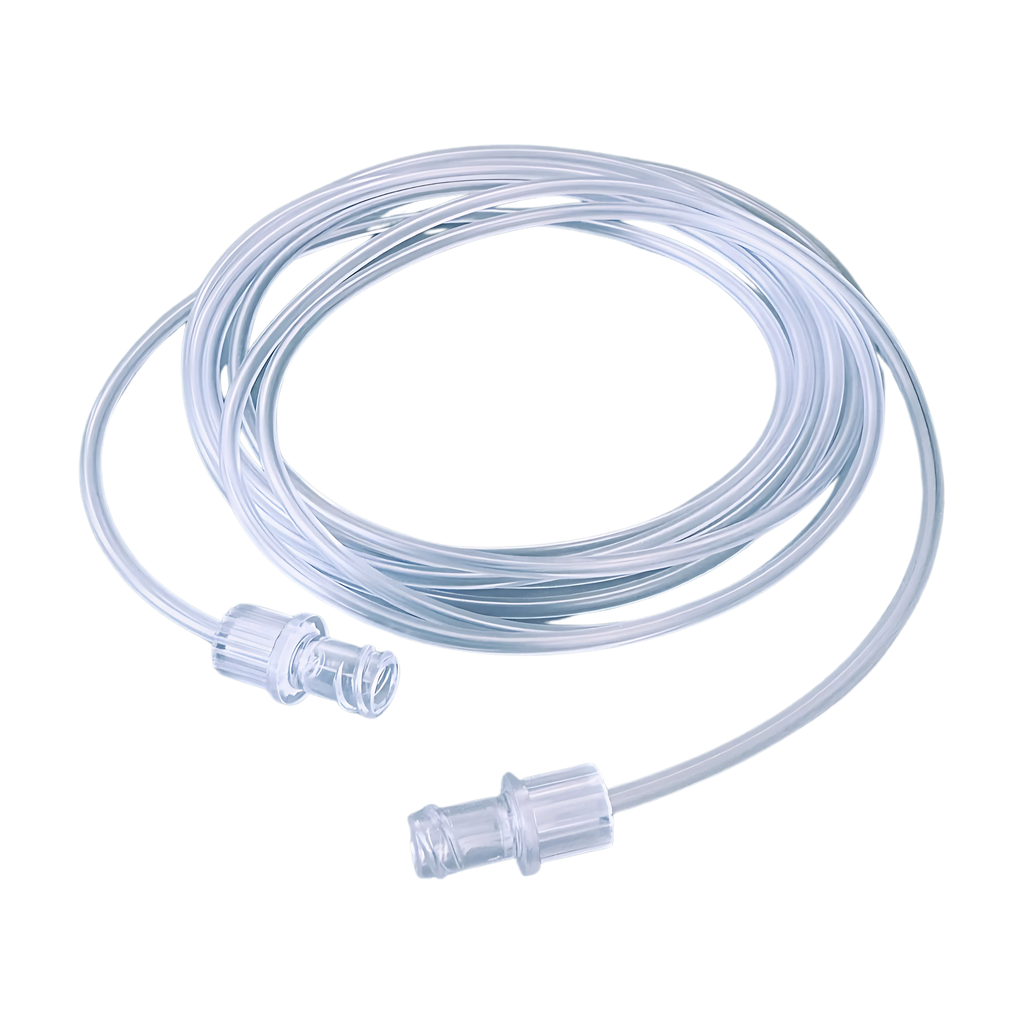

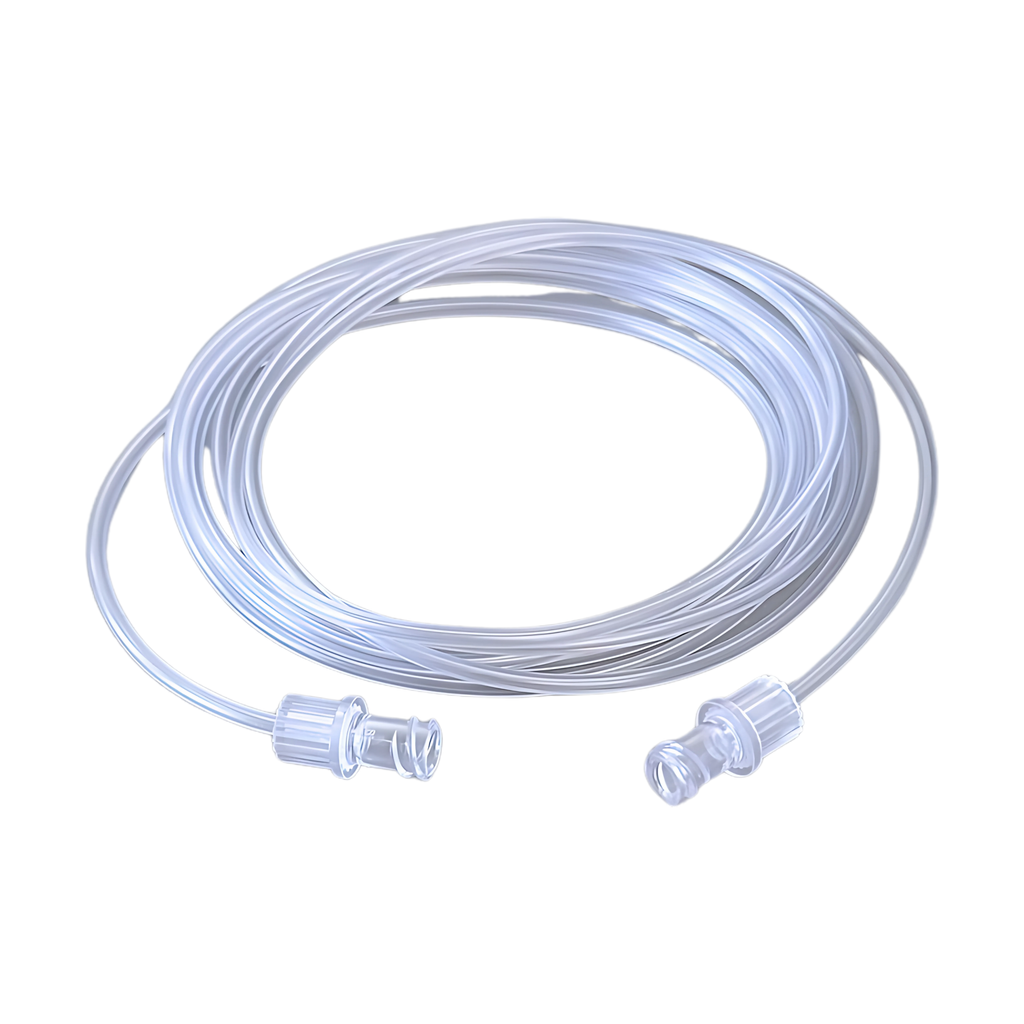

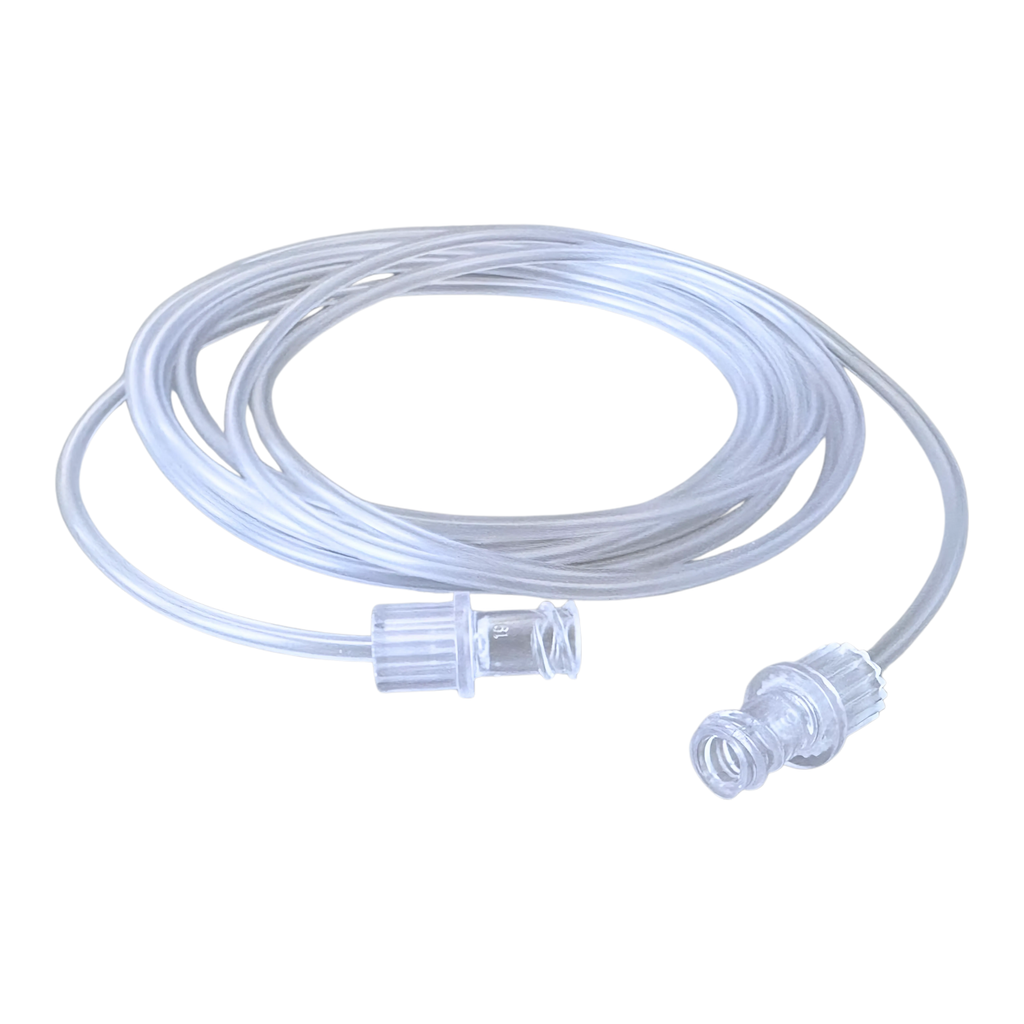

CO₂ Sample Line with Female/Female Luer Lock Connection, 7' - Pack of 10

Secure, Female-to-Female Luer Lock Connection CO₂ Sampling Line for Reliable Expired Gas Monitoring.

This 7-foot disposable EtCO₂ Sample Line is designed to deliver accurate, real-time monitoring of expired gases in both adult and pediatric patients. Featuring a Female Luer Lock on both ends, it ensures a secure, leak-resistant connection to both the patient via nasal cannula, nares connector or standard sampling port connectors and the capnography monitor.

This sample line is compatible with a wide range of Mindray capnography-enabled patient monitors, making it ideal for use in hospitals, sub-acute care, and mobile transport settings.

Key Features

• Compatible with Mindray Monitors: DPM 4, DPM 5, DPM 6, DPM 7, Passport V, Passport 12/12m/17m, T1, N1–N22, ePM 12M.

• Connection Type: Female Luer Lock (both ends) for secure, universal compatibility.

• CO₂ Monitoring Configuration: Designed for expired gas sampling in non-intubated patients.

• Flexible 7 ft. (213 cm) Tubing: Provides ample range for patient movement and versatile bedside setups.

• Filter-Free Design: Suitable for systems with integrated filtration or inline filter alternatives.

• Latex-Free & DEHP-Free PVC: Safe for sensitive patients and standard clinical use.

• Disposable & Single-Use: Helps prevent cross-contamination and supports infection control.

Specifications

• Product: EtCO₂ Sampling Line

• Length: 7 ft. (213 cm)

• Connection: Female Luer Lock x Female Luer Lock

• Configuration: CO₂ sampling only (no filter)

• Patient Population: Adult / Pediatric

• Sampling Tube Dimensions: ID 1.0 mm × OD 2.5 mm

• Expiration Date: 06/2028

• Use Type: Disposable / Single-Patient

• Environment of Use: Hospital, Sub-Acute, EMS

Instructions for Use

1. Remove the sample line from packaging.

2. Connect one end to the patient’s nasal cannula, airway adapter, or sampling port.

3. Connect the other end to the EtCO₂ monitor.

4. Allow monitor to warm up and begin waveform capture to begin sampling expiration measurement.

Warnings

• Single-use only – Do not clean, disinfect, or reuse

• Not for use with venous, arterial, or enteral systems

• Do not use if the packaging is damaged or compromised

🔒 Disclaimer: This product is not manufactured by Mindray. It is a compatible alternative, referencing OEM part number 115-043017-00 for identification purposes only.

Applications

• Intensive Care Units (ICU)

• Emergency Departments (ED)

• Operating Rooms & Procedural Sedation

• EMS and Transport Scenarios

• Adult and Pediatric Respiratory Monitoring
